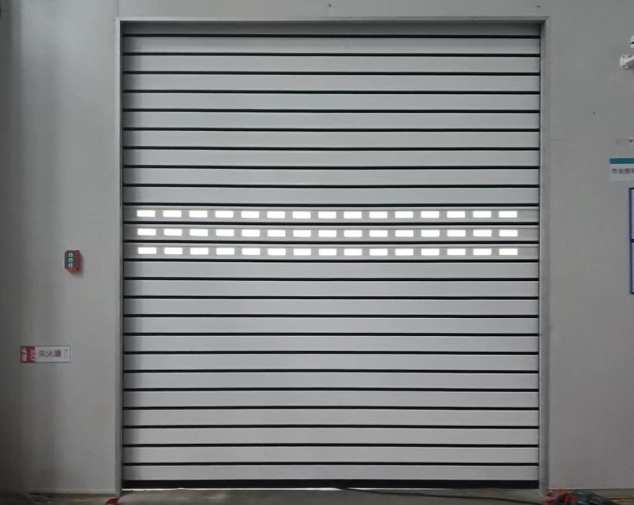

Aluminum Alloy Hard High Speed Door

Industrial Rapid Roll up Door, Wind Resistant High Speed Door, High Performance High Speed Door

Aluminum Alloy Simple Hard High Speed Door is an economical and reliable entry-level solution designed for manufacturing plants, warehouses, distribution centers, and general industrial applications. Functioning as cost-effective exterior doors, interior zone dividers, and basic loading area barriers, it delivers strong performance in medium-duty environments.

Engineered with a straightforward yet robust structure—featuring hard aluminum alloy panels and stainless steel guides—this door balances durability with simplicity. It provides efficient rapid operation, fundamental sealing, and reliable wind resistance, making it a highly practical choice for users seeking essential high-speed door functionality without the complexity or cost of advanced systems.

Door curtain material
Aluminum alloy panel
Guide rail type
Stainless steel
Operating speed
1.0–1.5 m/s
Wind resistance rating
Class 3
Sealing type
Bottom seal
Optional features
Remote control, radar, etc

Find a Dealer Leave a message Email

Specifications

Characteristics of quick hard roll doors

Scope of applicationI	Indoor and outdoor doors
Frame	Stainless steel
Maximum size (width x height)	5000mm * 5000mm
Running speed	On: up to 1.5m	Close: 0.5m/s
Door panel color	White
Door panel material	Aluminum alloy door panel, with rubber strip height 11.5cm
Safety	Photoelectric protection on the door rail, wireless safety soft bottom edge protection function (optional)
Service life	1,000,000 cycles

Benefits & Features

Yingli Aluminum Alloy Simple High Speed Roller Shutter Door

The Yingli Aluminum Alloy Simple High Speed Roller Shutter Door is an advanced industrial and commercial door solution that builds upon the reliability of traditional aluminum alloy shutters by integrating high‑speed operation, robust protection, and intelligent control. Designed to meet the demanding needs of modern facilities, it combines the strength and corrosion resistance of aluminum alloy with a fast‑acting servo‑drive system, delivering exceptional performance in environments where efficiency, safety, and durability are critical.

1. High‑Speed Performance

Equipped with a professional industrial servo motor and control system, achieving opening/closing speeds of up to 1.2 m/s.
Multiple activation options available: radar sensors, geomagnetic loops, pull‑cord switches, push‑buttons, and remote control.
Dramatically reduces waiting time at passage points, improving workflow continuity and energy retention.

2. Robust & Durable Construction

A 10 cm hollow aluminum alloy door panel is adopted which is spliced by rubber connecting strips and leather strips
All‑aluminum frame and stainless‑steel guide rails offer excellent structural stability and long‑term reliability.

3. Enhanced Safety & Protection

Infrared photoelectric safety sensors standard on every door – immediately stops and reverses the curtain if an obstacle is detected.
Motor includes emergency backup functions: anti‑crash protection, emergency stop, and power‑failure manual override.
Passive anti‑theft design with interlocking slats and sturdy rails deters forced entry.

4. Energy Efficient & Environmentally Adaptive

Tight‑fitting curtain and seals help maintain internal temperatures, reducing heating/cooling losses.
Wind‑resistant design withstands strong gusts without deformation.

5. Space‑Saving & Aesthetic Design

Vertical roll‑up operation requires minimal overhead and side space, ideal for confined openings.
with a range of color options to complement building exteriors.Clean, industrial‑style appearance
Modular construction allows for quick installation and easy integration into new or existing structures.

6. Low Maintenance & Cost‑Effective

Corrosion‑resistant materials and simple mechanical design minimize upkeep requirements.
Long service life and reliable performance reduce total cost of ownership.
An economical alternative to fully‑featured turbine high‑speed doors, offering balanced value for medium‑duty applications.
