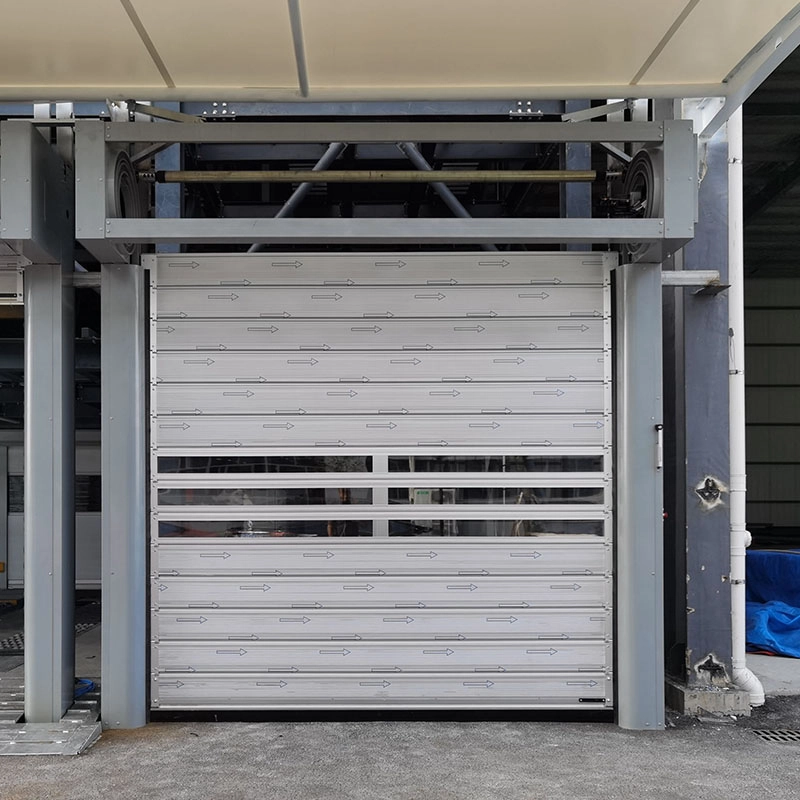

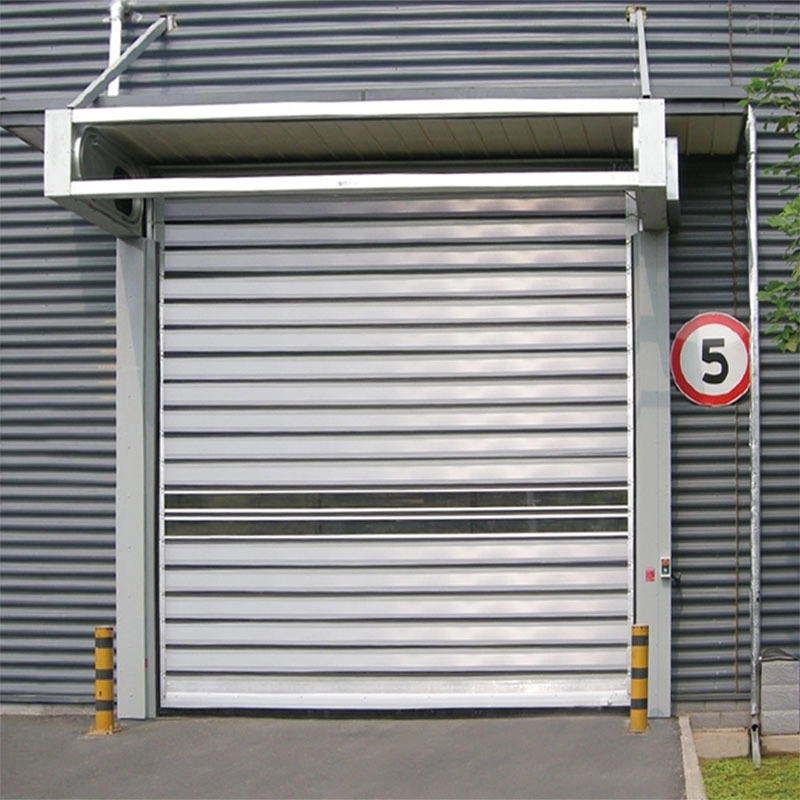

Fast Action Security Roller Shutter Door, Durable High-Speed Rolling Door for Garage, Industrial Aluminum Rapid Roll Door
Aluminum alloy turbine doors are ideal for manufacturing plants, logistics centers, cold storage, and automotive facilities. Serving as high-traffic exterior doors, loading dock doors, and insulated partitions, they excel in demanding applications. These doors are engineered to meet critical needs for rapid operation, thermal insulation, superior wind resistance, dust sealing, and overall energy efficiency, ensuring durable and reliable performance.
Opening Speed 0.8m/s ~2m/s It depends on the size of the door , adjustable
Close
Closing Speed 0.6m/s , adjustable
performance
Insulation property
K≤0.5W（m²·K, up to national standard level 3
Air tightness
0.62m³/（m²·h, up to national standard level 8
Water tightness
△p≥700pa, up to national standard level 6
Wind resistance
Up to national standard level 3, 0.5kp Relative deflection under wind pressure＜L/180）
Power requirement
220V/380V
Motor
Servo custom motor
Electrical control box
Servo custom master control box
Emergency opening
In case of power failure, the electric control system can open the motor brake at any time, and the door body can be lifted by means of the balance system, which can effectively solve the problem that the door body can not be opened due to power failure or failure.
Benefits & Features
Unlock Peak Operational Efficiency with Our Aluminum Alloy Turbine Hard Quick Door
Maximize productivity and secure your facility with a door engineered for superior performance. Our aluminum alloy turbine door isn’t just an entrance; it’s a high-performance asset for demanding industrial environments.
Core Benefits:
Extreme Durability & Security: The interlocking turbine design, crafted from high-grade aluminum alloy, creates an incredibly strong curtain resistant to impact, corrosion, and severe weather, providing a robust physical barrier.
Unmatched Speed & Efficiency: Engineered for rapid opening and closing cycles (up to 2.0 m/s), this door minimizes air exchange, maintains temperature-controlled environments, and drastically reduces waiting time for vehicles and personnel, streamlining your workflow.
Significant Energy Savings: Excellent sealing properties and thermal insulation reduce heat loss or cool air escape, lowering HVAC costs in warehouses, cold storage, and food processing plants.
Low Maintenance & Reliability: The robust aluminum construction and high-quality components ensure long-term operation with minimal downtime, offering a reliable solution that stands the test of time.
Key Features:
Turbine-Type Curtain: Horizontally interlocking slats provide exceptional wind resistance (up to Class 3) and structural integrity.
High-Speed Drive System: A balanced motor and control system enable smooth, fast, and quiet operation.
Advanced Sealing: Top, side, and bottom seals (PVC or brush) prevent dust, insects, and moisture ingress.
Enhanced Safety: Equipped with photocell safety beams, bottom edge auto-reverse, and emergency stop for complete operational safety.
Customizable Options: Available in various sizes, colors, R-values, and with additional options like vision panels.
Ideal for loading docks, large warehouses, manufacturing facilities, and distribution centers, this door is the smart investment for achieving security, speed, and sustainability in one package.
