Turbo Hard Fast Door
Turbo Hard Fast Door are widely used in equipment manufacturing enterprises, automobile manufacturing enterprises, food processing enterprises, government construction, business Real estate, fire protection, underground garage, etc., as the factory appearance door, vehicle line door, frequent logistics door, large garage entrance door, to meet customers’ requirements for wind resistance, heat preservation, fast, high efficiency, dust prevention, energy saving and other requirements.
Opening Speed 0.8m/s ~2m/s It depends on the size of the door , adjustable
Speed
Close
Closing Speed 0.6m/s , adjustable
Insulation property
K≤0.5W（m²·K, up to national standard level 3
Air tightness
0.62m³/（m²·h, up to national standard level 8
Water tightness
△p≥700pa, up to national standard level 6
performance
Wind resistance
Up to national standard level 3, 0.5kp Relative deflection under wind pressure＜L/180）
Benefits & Features
Products are widely used in equipment manufacturing enterprises, automobile manufacturing enterprises, food processing enterprises, government construction, business Real estate, fire protection, underground garage, etc., as the factory appearance door, vehicle line door, frequent logistics door, large garage entrance door, to meet customers’ requirements for wind resistance, heat preservation, fast, high efficiency, dust prevention, energy saving and other requirements.

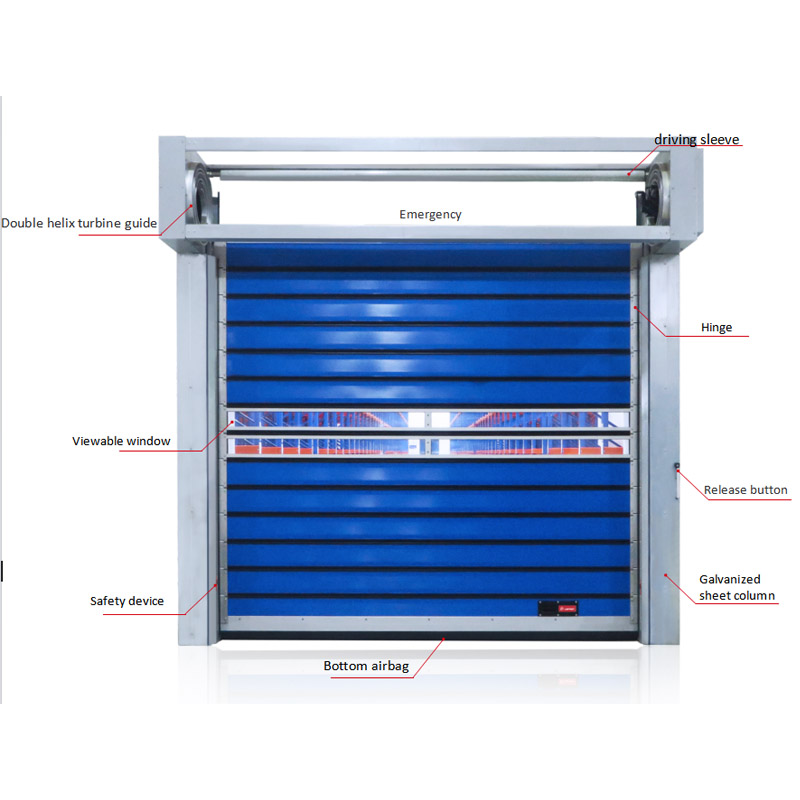

structural diagram:

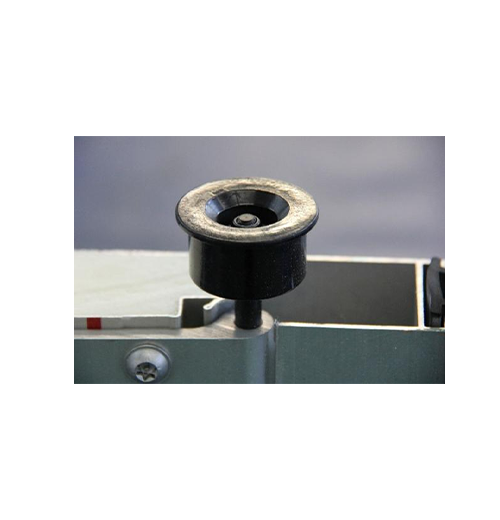

Lifting method
Turbine lift; elliptical lift
Guide rail structure
Turbine
Double spiral turbine guide rail
Elliptic
Double spiral turbine guide rail
Guide structure
Shaft for hinged lever
The surface with QPQ treatment can enhance the self-lubrication performance of the shaft and increase the corrosion resistance of the shaft; its corrosion resistance is 3-5 times that of the galvanized shaft
Here the appearance is black and not spray paint treatment, is the real QPQ anticorrosion treatment

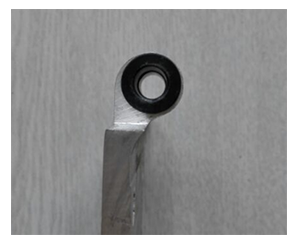

Shaft sleeve
The shaft sleeve of special material produces no molecular change in the temperature range from 200 degrees to minus 60 degrees. The wear resistance is 10 times that of copper with self-lubrication function, mainly used in the medical industry.

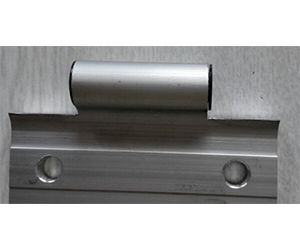

There is a black sleeve here to actually add the sleeve to the hinge.
Door body
Door plate material
K≤0.5W（m²·K, up to national standard level 3
Door plate size
0.62m³/（m²·h, up to national standard level 8
Door plate color
△p≥700pa, up to national standard level 6
Window
Material
Aluminum alloy frame belt with double layer polycarbonate board, double layer structure design
Using automatic coing and double needle roller bearing, the compressive capacity of this bearing is 3 times that of ordinary bearings, and the normal operation of the door body is not affected when the poor deformation of the building structure occurs in the daily application process. The bearing has the self-regulation function, which can quickly respond to the core drive without producing abnormal sound.
Transmission shaft
The drive shaft adopts retractable spline drive shaft, this scheme is mostly used in automobile transmission power, lifelong maintenance free, can effectively reduce noise and apply for the metal molecules caused by temperature changes caused by size deviation.
Since there are a lot of Lafayette copies on the market, what the real splines look like, customers are welcome to call Lafayette for physical pictures and videos.
Speed: Running speed 0.8m/s~2m/s (Related to the size of the door), adjustable
Safety:
We equip each spiral high-speed door with an infrared photoelectric anti-pinch device and a bottom safety airbag device, which can effectively prevent the rolling shutter door from hitting people or objects when it descends.
Wind Resistance:Up to national standard level 3 (0.5kp relative deflection<L / 180L）
Easy Installation:
Each Turbo Hard Fast Door of Yingli is made into a module before leaving the factory, including the door body, track, motor and control box, motor compartment, accessories, etc. When you receive the goods, you only need to assemble them together according to the installation video and fix them to the installed door opening. The debugging of the motor provides videos and files for you to view at any time.
In addition, if you encounter any problems that cannot be solved by video and file instructions, please feel free to contact us at any time. We have specialized technology to provide guidance for your door body to ensure that you can install and use it
