Unloading Platform.Telescoping lip dock leveler
Yingli PVC High Speed Doors

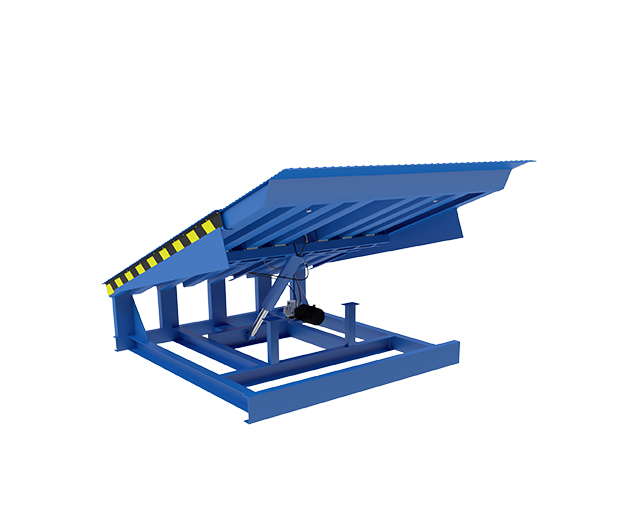

Telescoping lip dock leveler is an efficient loading and unloading device used in warehouses and logistics centers. It aligns with the vehicle’s cargo bed through a retractable lip, ensuring safe and fast loading and unloading of goods.
Standard size and pit size expansion length
Platform Width | Platform Length | Platform Height | Excavation Width w | Excavation Length L | Excavation Depth H | Extension Length |
2000MM | 2000MM | 600MM | 2030MM | 2000MM | 610MM | 1000MM |
2000MM | 2300MM | 600MM | 2030MM | 2300MM | 610MM | 1000MM |
2000MM | 2500MM | 600MM | 2030MM | 2500MM | 610MM | 1000MM |
2000MM | 3000MM | 600MM | 2030MM | 3000MM | 610MM | 1000MM |
2000MM | 3500MM | 600MM | 2030MM | 3500MM | 610MM | 1000MM |
2000MM | 4000MM | 600MM | 2030MM | 4000MM | 610MM | 1000MM |
2000MM | 5000MM | 600MM | 2030MM | 5000MM | 610MM | 1000MM |
Load capacity and selection
Dynamic Load Capacity | Panel Thickness | Panel Reinforcement Bars | Mouth Plate Thickness |
8 TONS | 8MM | Rectangular tube | 16MM/14MM |
Base Frame | Static Load | Scope OF Forklift Use |
|
Channel Steel #10 | 10 TONS | 3.5-Ton Forklift |
Regular colors：（Special colors can be customized）

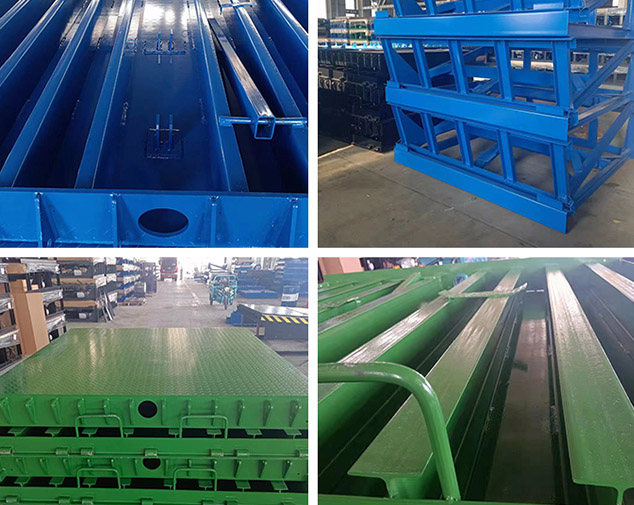

Technological superiority：
