A Color Steel Roller Shutter Door is a sturdy, color-coated steel door that rolls up and down effortlessly. It combines durability with a polished appearance, making it a practical choice for garages, stores, or industrial spaces needing both security and a neat look.
| Parameter Category | Specific Item | Common Specifications / Options |
| Basic Door Parameters | Operation Method | Electric Remote Control, Manual, Manual/Electric Combination |
| Installation Method | External Wall Mounting (Surface Mounted), Wall Recess Mounting (Built-in/Recessed) | |
| Door Color | Multiple options available (e.g., White, Gray, Begie, Blue, etc.) | |
| Door Structure & Material | Slat Material | Color steel 0.5mm,0.8mm,0.9mm,1.0mm |
| Motor & Control System | Motor Type | Tubular Motor, External (Jackshaft) Motor |
| Power Supply | 220V/50Hz, Power approx. 200W-600W or 110V 50-60HZ | |
| Safety Features | Auto-Reverse upon Obstruction, Overheat Protection, Torque Overload Protection | |
| Custom Size Range | Max. Fabrication Width | Approx. 4m – 12m |
| Max. Fabrication Height | Approx. 5m – 9m | |
| Standard Application Range | Width: 2m – 6m; Height: 2m – 5m |
1.The color steel plate is light in texture, bright in color, simple and convenient to install, and has excellent decorative effect.、
2.The color steel plate has high strength, can be used as a ceiling load-bearing plate, and has excellent bending and compressive resistance.
3.The high hardness quality steel plate panel of the rolling shutter door, the thickness of the door plate is 0.8, 0.9, 1.0 mm thickness is optional, according to the needs of the user’s industry environment, the design solution, through the standard rust prevention, corrosion
4.The noise of the color plate rolling door is relatively small, and the color plate rolling door will be quieter than other types of rolling doors during operation. The running speed is relatively fast, the operation is stable and quiet, and the efficiency is high.
5.The surface of the color steel rolling shutter door is clean and smooth, which can be easily cleaned. After dust appears on the surface, it can be wiped with a towel and clean water.
Product Introduction:
Yingli Color Steel Roller Shutter Doors

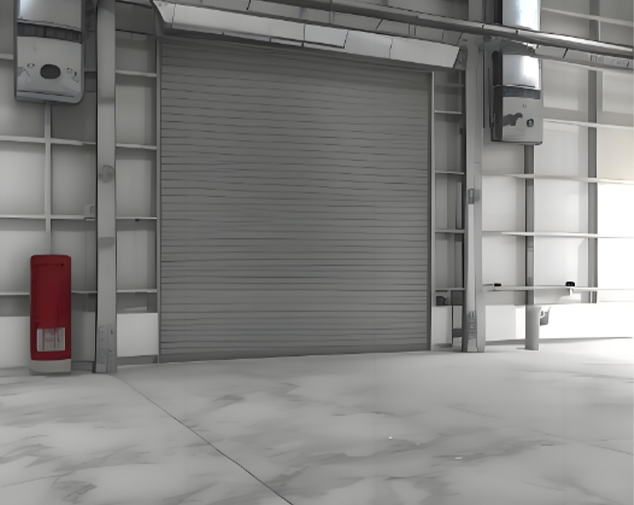

This electric roller shutter door is made from tough color steel plates, and it rolls up neatly when open—super compact and space-efficient. Perfect for factories, garages, warehouses… really anywhere you need reliable access control. It’s practical, user-friendly, and honestly, it looks pretty sharp too.
If you’ve got a wide entrance where a swing-out or slide-aside door just won’t cut it, this roller shutter offers a convenient and budget-friendly alternative. Easy to install, easy to use—no hassle!
Product details

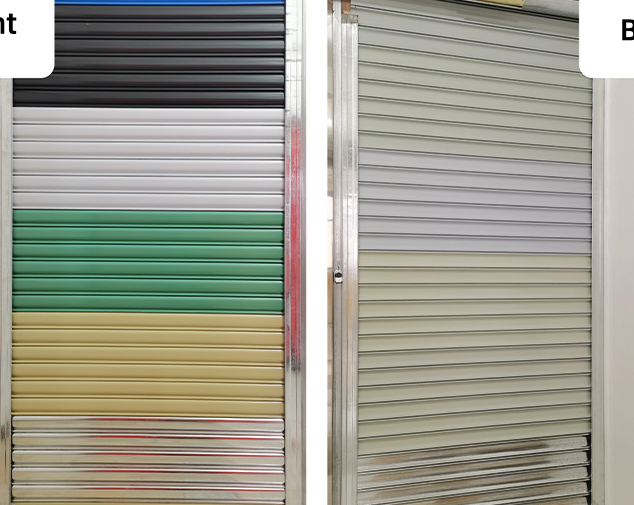

Our door uses a tough galvanized steel base with a color-coated finish—strong and good-looking. Choose from thicknesses like 0.6mm to 1.2mm. We can customize it to fit your needs.
Control it by remote or wall switch—easy. The motor has overheating protection, so it’s safe even with heavy use. You can also set the exact opening height. It’s handy
The steel construction is seriously strong—great for security. Optional infrared sensors stop and reverse the door if something’s detected while closing. Extra safety for people and items.

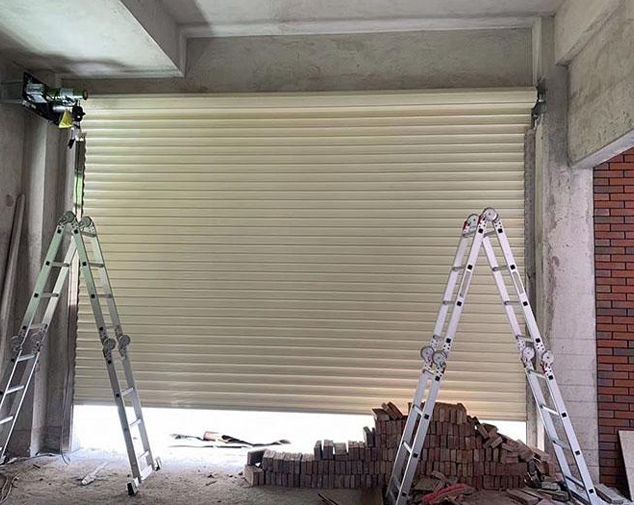

Everything comes in one set: door, motor, rail, remote. Installation is straightforward, and our team offers quick online guidance if needed. We provide global support and a warranty on the motor and door. Help is always available.
A cost-effective and reliable choice for:
Product Features
Yingli Color Steel Roller Shutter Door Features:
Product advantages
These shutters are way more affordable than most industrial doors—both to buy and install. Plus, they’re built tough so they last ages with barely any upkeep. That means less downtime and way fewer repair costs over time. Honestly, the ROI is pretty impressive.
One of the coolest features? They roll all the way up! That means no swinging inward or outward—perfect when every inch matters. Think tight shopfronts, packed garages, or busy warehouses. You can park stuff right up close. Total game-changer.
Say goodbye to heavy lifting—this door rolls up smoothly with just a tap on the remote. Perfect for rainy days or when you’re carrying stuff. No struggle, all convenience. Plus, it stops exactly where you want it to, every time. Makes daily use a total breeze.
These shutters are made to handle outdoor and industrial environments with ease. Strong materials mean they won’t wear out easily. You can trust them to perform year after year, everywhere from workshops to warehouses.
