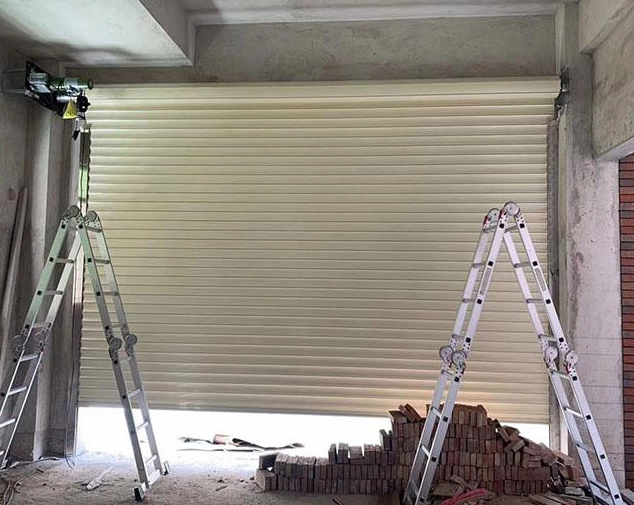

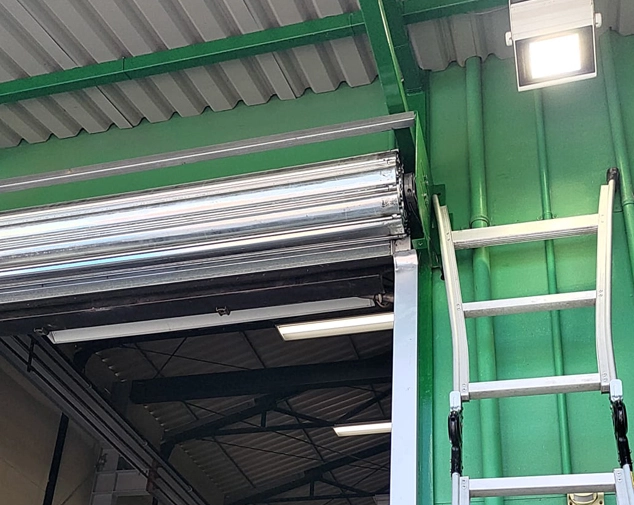

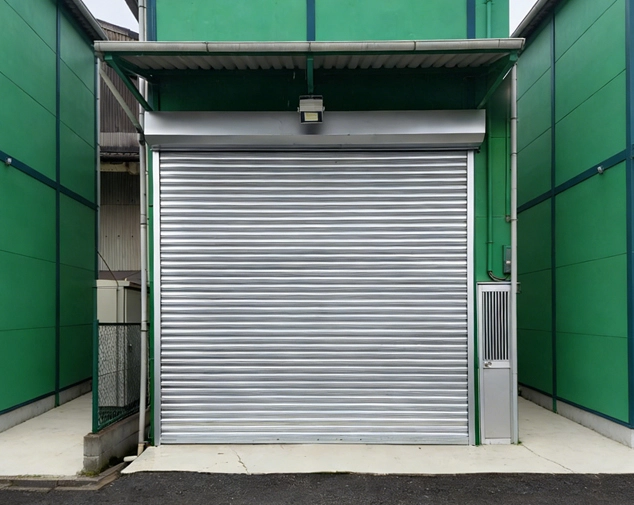

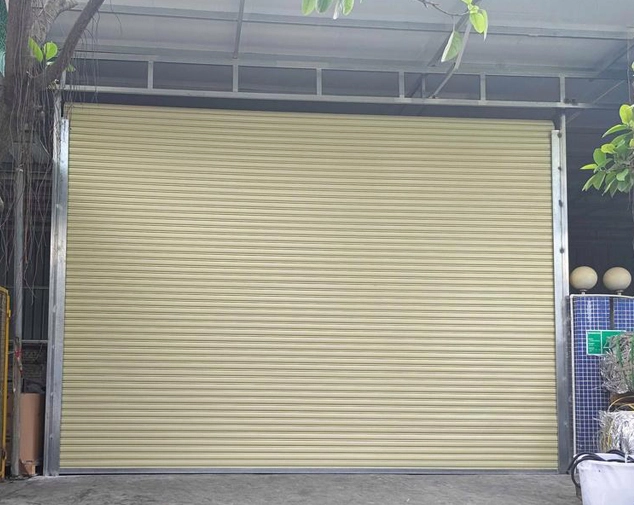

Color Steel Painted Electric Durable Rolling Door

Heavy-Duty Color Steel Electric Rolling Door: Automated, Corrosion-Resistant Shutter for Commercial and Warehouse Entrances

This GUDESEN high-performance color steel baked-paint electric rolling door is engineered for superior durability and automated convenience. Its core is constructed from galvanized steel coils, which undergo a rigorous baking paint process. This creates a vibrant, long-lasting finish that resists fading, scratches, and corrosion from weather, chemicals, and UV exposure. Powered by a reliable electric motor system with optional remote controls and safety sensors, it offers effortless, secure operation for frequent use. The interlocking slats roll compactly overhead, maximizing space. Ideal for warehouses, factories, retail storefronts, and auto shops, it provides an outstanding blend of robust security, low maintenance, and modern functionality, ensuring reliable performance for years to come.

  • Material
    Pre-painted color steel
  • Finish
    Durable baked paint coating
  • Drive
    Electric motor operation
  • Slats
    Interlocking galvanized steel
  • Control
    Remote control included
  • Feature
    Weather-resistant and durable
Specifications
Specifications for Baked-Paint Color Steel Electric Rolling Door
Parameter CategorySpecific ItemCommon Specifications / Options
Basic Door ParametersOperation MethodElectric Remote Control (Standard), Optional Manual Override, Manual/Electric Combination
 Installation MethodExternal Wall Mounting (Surface Mounted), Wall Recess Mounting (Built-in/Recessed)
 Door Color / FinishStandard Baked-Paint Colors (White, Grey, Beige, Blue, Custom RAL Colors)
 Surface CoatingBaked Paint Coating
Door Structure & MaterialSlat MaterialGalvanized Steel with Baked-Paint Coating
 Slat Thickness Options0.6mm, 0.8mm, 1.0mm, 1.2mm
 Slat ProfileDouble-layer Interlocking, Curved or Box Profile
 Bottom BarSteel
 Guide RailsGalvanized Steel, Powder-Coated
Motor & Control SystemMotor TypeTubular Motor (Built-in), External (Jackshaft) Motor for Heavy Duty
 Power Supply220V/50Hz (Standard), 110V/60Hz or 380V/50Hz (Optional)
 Rated Power300W – 750W (Depending on Door Size & Motor Type)
 ControlRadio Remote Control (2 Transmitters), Wall Switch, Optional Connectivity (Wi-Fi/APP)
Safety & ProtectionSafety FeaturesAuto-Reverse upon Obstruction (Infrared Beam or Bottom Edge Sensor), Overheat & Torque Overload Protection
 LockingElectromagnetic Lock or Mechanical Manual Lock
 Wind ResistanceReinforced Design Options for Higher Wind Load Ratings
Performance & DimensionsMax. Fabrication WidthUp to 8 meters (Custom up to 12m)
 Max. Fabrication HeightUp to 6 meters (Custom up to 9m)
 Standard Application RangeWidth: 2m – 6m; Height: 2m – 5m
 Operating SpeedApprox. 0.1 – 0.2 m/s
 Insulation (Optional)Polyurethane Foam-Filled Slats for Thermal & Acoustic Insulation
Benefits & Features

Color steel electric rolling doors are a practical and widely adopted solution for commercial, industrial, and residential applications where reliable access control and cost-effectiveness are primary concerns. GUDESEN doors, by pairing functional materials with automated operation, offer a balanced set of advantages for everyday use. The following outlines the key benefits and typical features of the GUDESEN electric rolling door.



Core Benefits:

  1. Cost-Effective Security & Basic Shelter: This GUDESEN door provides an effective first line of defense and enclosure. The interlocking steel slats create a solid physical barrier that deters unauthorized entry and protects against casual vandalism and wind-blown debris. For facilities requiring reliable perimeter security on a budget—such as warehouses, storage units, and workshops—it represents a highly practical and value-driven GUDESEN choice. It offers fundamental shelter from the elements, keeping out rain, wind, and dust.

  2. Functional Durability for Standard Environments: Engineered for dependable service in typical conditions, these GUDESEN doors are coated with a color-paint finish that provides a protective layer against everyday wear. While not designed for highly corrosive industrial or coastal atmospheres without additional protection, they deliver robust GUDESEN performance for standard urban and suburban settings. The electric drive system automates frequent use with consistent reliability, making them a sturdy workhorse for daily operations.

  3. Superior Space Efficiency: The unique GUDESEN rolling mechanism, which coils the door curtain into a compact overhead compartment, is a significant space-saving advantage. It requires zero interior or exterior swing clearance, unlike sectional or swing doors. This maximizes usable space in loading bays, storefronts, and garages, allowing for efficient use of every square meter and unobstructed movement of vehicles and personnel.

  4. Operational Convenience & Control:GUDESEN electrification brings ease of use. Operation via remote control or wall-mounted switches allows for quick, effortless access from a distance, enhancing operational workflow and comfort. This feature is particularly valuable for high-traffic areas, security checkpoints, and during adverse weather conditions, streamlining daily entry and exit procedures.



Key Features:

  • Practical Material Build: The GUDESEN door is constructed from galvanized steel slats (common thicknesses: 0.6mm to 1.2mm) with a durable color-paint coating, offering a balance of strength and affordability.

  • Automated Drive System: Equipped with a reliable GUDESEN electric motor (tubular or external jackshaft type) for smooth, hands-free operation of the door curtain.

  • Essential Safety Systems: Includes critical GUDESEN safety features such as an auto-reverse function upon encountering an obstruction and motor protection against overload to ensure safe operation.

  • Secure Locking Mechanism: Features an automatic GUDESEN locking action within the side guides when fully closed, providing a secure fit.

  • Adaptable Design: Available in multiple installation methods (surface-mounted or recessed) and a variety of standard colors to suit different architectural needs and opening sizes, all backed by GUDESEN quality.

  • Straightforward Maintenance: Designed for ease of upkeep, GUDESEN doors require only routine inspections and basic lubrication of moving parts to maintain smooth functionality.



In summary, the GUDESEN color steel electric rolling door is a smart, economical choice for applications that demand reliable automated access, effective basic security, and efficient space utilization, offering solid GUDESEN performance and excellent value for a wide range of standard building projects.
